OmniMux™
Multi-E1/T1 over Optical IP Network
Evolutionary Convergence in Transmission of Traditional Voice and Data over Optical IP Network

    OmniMux is designed as a multi-service access platform for PDH over IP applications. E1/T1 frames can be mapped/de-mapped into/from IP packets. An adaptive clock recovery method for Ingress PDH (PSN -> TDM) clock generation is implemented to support E1/T1(ITU-T G.823/ANSI T1.105) Jitter performance.

Cost-effective IP Deployment (PDH over IP)
    OmniMux provides cost-effective applications of traditional circuit-switched system over optical IP network. With Omni, it is easy to interconnect existing phone systems over IP that are used to carry data, voice and video.

Transparent Transmission
    OmniMux can transparently transport proprietary signaling that are required to support PBX features, including call conference, call forwarding and SS7. Customer can easily apply and enjoy better integration of TDM and IP devices with lower network expense.

Bypass International Toll
    With a pair of OmniMuxs and guaranteed internet bandwidth, it is sure to save cost dramatically, and to ensure the QoS of voice based on interconnections of TDM equipment.

Applications

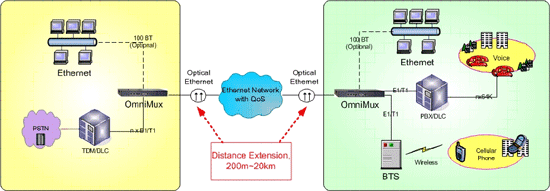

Application 1: Multi-E1/T1 over Optical IP Network

Multi-E1/T1 over Optical IP Network

Features

1.	Support IEFT RFC4533 Structure-Agnostic TDM over Packet (SAToP), Metro Ethernet Forum MEF8.
2.	4 x E1/T1 NRZ Serial Interface with LOS/AIS detection.
3.	Use Raw Encapsulation method for PDH payload over IP packet.
4.	Support Circuit Emulation Service over IP.
5.	Comply with IEFT draft standard for CESoPSN and SAToP; Metro Ethernet Forum MEF8 IA.
6.	Support both Point-to-Point and Point-to-Multipoint operation.
7.	Support 4 independent Adaptive Clock recovery block for Ingress PDH (PSN -> TDM) clock generation. Recovered clock jitter is compliant to ITU-T G.824/ANSI T1.105 (E1/T1 Jitter Control).
8.	Independent configurable jitter buffer depth to compensate up to 250ms of Packet Delay Variation.
9.	Lost packets processing/compensation via PW (Pseudo Wire) control field Sequence Number.
10.	Provide Subscriber side Data traffic bandwidth control to guarantee enough TDM payload bandwidth.
11.	PDH LOS detection triggered PW L field or payload AIS generation at Egress direction (TDM -> PSN).
12.	Configurable IEEE 802.3 DA/SA assignment.
13.	Configuration can be made through RS-232 console port or Easy-to-use GUI (Graphic User Interface).
