GEMate™
Giga Ethernet over STM-1/DS3 Multiplexer
Bridge the Gap between STM-1/DS3 and Giga Ethernet with TDM Inverse Multiplexing
|
GEMate series provides cost-effective bridge function to support full-duplex Giga Ethernet over STM-1/DS3.
GEMate series is a Giga Ethernet over SDH/PDH service unit, which converts 1,000 Mbps full duplex Giga Ethernet to STM-1/DS3. Its target application is mainly the transparent Giga traffic interconnection via existing SDH/PDH networks.
GEMate series implements the latest layer 2 over SDH/PDH technology (GFP, Generic Framing Procedure, ITU-T G.7041) to encapsulate Giga Ethernet frame over SDH/PDH network.
Versatile LEDs are provided for alarms and status indication. A RS-232 console interface with in-band management is embedded in GEMate series for debugging and diagnosis.
|
| Applications |
 |

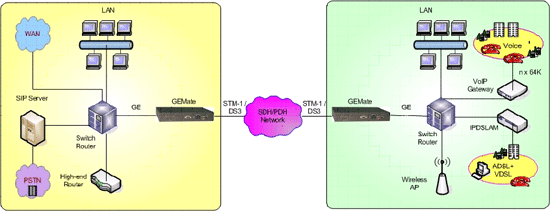

Application 1: Giga Ethernet over STM-1/DS3
|
| Features |
|
| 1. |
Support GFP frame encapsulation over STM-1/DS3. |
| 2. |
STM-1 optical interface is compliant with ITU-T G.707/G.957. |
| 3. |
GE optical interface can support SX/LX/LHX type. |
| 4. |
Support Jumbo packet up to 9,600 bytes. |
| 5. |
Provide RS-232 console port with in-band remote control (alarm, configuration, and loopback). |
| 6. |
Provide “LOS, and PATH, LRDI and HRDI” red indicators for STM-1 optical interface alarm. |
| 7. |
Provide “LOS, PATH and FERF” red LED indicaitors for DS3 interface alarm. |
| 8. |
Provide “Link status, Tx Act, Rx Act” green LED indicators for GE interface status. |
| 9. |
Provide a LED indicator for power status. |
| 10. |
Stand–alone desktop unit, optional 19” or 23” rack mountable. |
|
