ClockMate™
BITS to Hertz Clock Converter
Convert Traditional BITS to General Hertz Clock (Hz)

ClockMate is designed as a clock converter. User can convert traditional BITS to general Hertz clock.

Cost-Effective Clock Converter
ClockMate provides cost-effective applications of converting traditional BITS clock to general Hertz clock. With ClockMate, it is easy to convert existing BITS device to Hertz Clock.

Applications

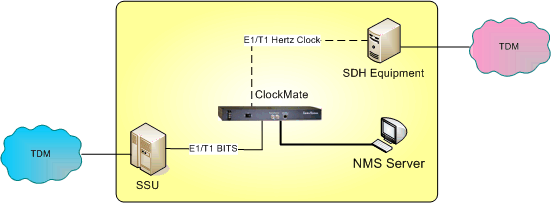

Application 1: Convert BITS to Hertz Clock

Features

1.	Provide E1/T1 BITS input.
2.	Provide RJ-48c (120 Ohm) / BNC (75 Ohm) for E1 BITS input.
3.	Provide RJ-48c (100 Ohm) for T1 BITS input.
4.	Provide RJ-48c (120 Ohm) / BNC (75 Ohm) for E1 Hertz Clock output.
5.	Provide RJ-48c (100 Ohm) for T1 Hertz Clock output.
6.	One E1/T1 Serial Interface with Loss Of Signal (LOS) detection.
7.	Provide Dry Contactor (Option).
8.	Support real-time clock / logging maintains a history of all events (Option).
9.	Remotely accessible over a TCP-IP networks (Option).
10.	Configuration can be made through RS-232 console port or Easy-to-use GUI (Graphic User Interface)(Option).
