FiberBridge™

FiberBridge series provides cost-effective bridge function to support
one 10/100/1000Base-T (UTP/RJ-45) port and one 1000Base-X (optical) full-duplex Gigabit Ethernet port to extend the transmission distance up to 20Km.

Applications

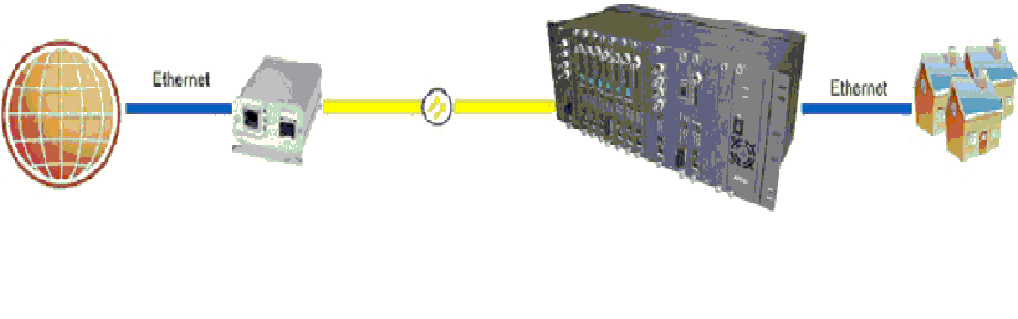

Application: Bridge the Ethernet interfaces between fiber optics with

Features

1.	10/100/1000Base-T Gigabit Ethernet is compliant wth IEEE 802.3ab.
2.	1000Base-SX/LX is compliant with IEEE 802.3z.
3.	Gigabit Ethernet optical interface can support Simplex/Duplex LC/ST/FC/SC type.
4.	Provides clear LED indicators for link status.
5.	Dual power input connectors.
6.	Maximum reach is 500m with multimode fiber.
7.	Distance up to 20Km with single mode fiber.
8.	Support multimode fiber of 50/125μm or 62.6/125μm at wavelength of 850nm or 1310nm.
9.	Support single mode fiber of 9/125μm at wavelength of 1320nm or 1550nm.
10.	Stand–alone desktop unit, optional 19" chassis to accommodate up to 16 pieces of modules.
